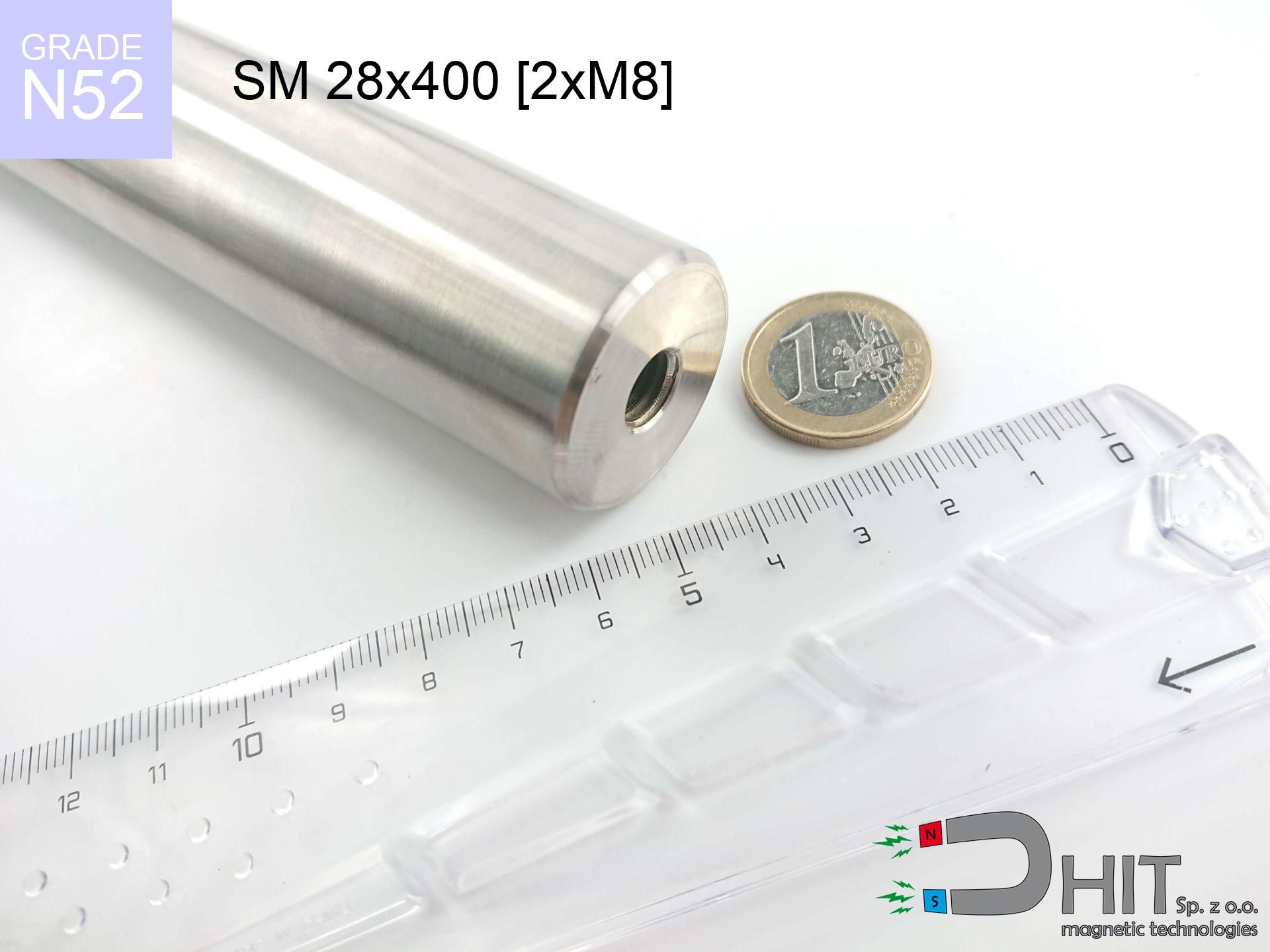

SM 28x400 [2xM8] / N52 - magnetic separator

magnetic separator

Catalog no 130525

Diameter Ø
28 mm [±1 mm]
Height
400 mm [±1 mm]
Weight
1956.86 g
Magnetic Flux
~ 8 500 Gauss [±5%]

How we measure these parameters — certificates and measurements

technical details »

1010.00 zł net / pcs

1242.30 zł with VAT (23% VAT) / pcs

price for transport

bulk discounts:

Need more?
Quantity
Net
Gross
price from 1 pcs
1010.00 zł
1242.30 zł
price from 5 pcs
909.00 zł
1118.07 zł

Frequently asked questions

Which rod should I choose for fine contamination?
For particles below 0.5 mm — a Ø32 mm rod in grade N52, with surface induction of about 10,000 Gs. A Ø25 rod in grade N42 gives about 6,500 Gs and is chosen for contamination above 1 mm: bolts, washers, pieces of wire.
Which rod pitch should I choose?
The narrow pitch, 40 mm centre to centre, for fine free-flowing fractions — it gives denser coverage of the cross-section. The wide pitch, 50 mm, for granulates and for damp, greasy or sticky materials, where a narrow pitch risks the material bridging above the rods.
Why does efficiency drop after a few weeks of operation?
Almost always because the separator has not been cleaned. The layer of captured particles shields the field, and further particles settle on that layer rather than on the rod surface, where the gradient is far stronger. The magnets themselves do not weaken at that rate.

Guides from the knowledge base

Want to talk magnets?

Call us now +48 888 99 98 98 alternatively let us know using contact form the contact section.
Specifications and structure of a neodymium magnet can be estimated using our power calculator.

Order by 14:00 and we’ll ship today!

Technical - SM 28x400 [2xM8] / N52 - magnetic separator

Specification / characteristics - SM 28x400 [2xM8] / N52 - magnetic separator

properties
properties values
Cat. no. 130525
Production/Distribution Dhit sp. z o.o.
ul. Zielona 14 05-850 Ożarów Mazowiecki PL
Country of origin Poland / China / Germany
Customs code 85059029
Diameter Ø 28 mm [±1 mm]
Height 400 mm [±1 mm]
Weight 1956.86 g
Material Type Stainless steel AISI 304 / A2
Magnetic Flux ~ 8 500 Gauss [±5%]
Size/Mount Quantity M8x2
Polarity circumferential - 15 poles
Casing Tube Thickness 1 mm
Manufacturing Tolerance ±1 mm

Magnetic properties of material N52

Specification / characteristics SM 28x400 [2xM8] / N52 - magnetic separator
properties values units
remenance Br [min. - max.] ? 14.2-14.7 kGs
remenance Br [min. - max.] ? 1420-1470 mT
coercivity bHc ? 10.8-12.5 kOe
coercivity bHc ? 860-995 kA/m
actual internal force iHc ≥ 12 kOe
actual internal force iHc ≥ 955 kA/m
energy density [min. - max.] ? 48-53 BH max MGOe
energy density [min. - max.] ? 380-422 BH max KJ/m
max. temperature ? ≤ 80 °C

Physical properties of sintered neodymium magnets Nd2Fe14B at 20°C

Physical properties of sintered neodymium magnets Nd2Fe14B at 20°C
properties values units
Vickers hardness ≥550 Hv
Density ≥7.4 g/cm3
Curie Temperature TC 310 °C
Curie Temperature TF 590 °F
Specific resistance 150 μΩ⋅cm
Bending strength 250 MPa
Compressive strength 1000~1100 MPa
Thermal expansion parallel (∥) to orientation (M) (3-4) x 10-6 °C-1
Thermal expansion perpendicular (⊥) to orientation (M) -(1-3) x 10-6 °C-1
Young's modulus 1.7 x 104 kg/mm²

Table 1: Rod construction
SM 28x400 [2xM8] / N52

Parameter Value Description / Unit
Diameter (Ø) 28 mm
Total length 400 mm (L)
Active length 364 mm
Section count 15 modules
Dead zone 36 mm (2x 18mm starter)
Weight (est.) ~1872 g
Active area 320 cm² (Area)
Housing material AISI 304 1.4301 (Inox)
Surface finish Ra < 0.8 µm Polished
Temp. class 80°C Standard (N)
Force loss (at max °C) -12.8% Reversible loss (physics)
Force (calculated) 22.7 kg (theor.)
Induction (surface) ~8 500 Gauss (Max)
Max T = 80°C. Construction data for M8/M10 thread series.

Chart 2: Field profile (15 sections)

Simulation: 15 magnetic modules (pitch 23 mm).

Chart 3: Temperature performance

Technical specification and ecology

Elemental analysis

iron (Fe) 64% – 68%
neodymium (Nd) 29% – 32%
boron (B) 1.1% – 1.2%
dysprosium (Dy) 0.5% – 2.0%
coating (Ni-Cu-Ni) < 0.05%

Sustainability

recyclability (EoL) 100%
recycled raw materials ~10% (pre-cons)
carbon footprint low / zredukowany
waste code (EWC) 16 02 16
Safety card (GPSR)
responsible entity
Dhit sp. z o.o.
ul. Kościuszki 6A, 05-850 Ożarów Mazowiecki
tel: +48 22 499 98 98 | e-mail: bok@dhit.pl
batch number/type
id: 130525-2026
Quick Unit Converter

Magnet pull force

Magnetic Field

Just populate any input, and the calculator fill in the rest instantly.

Check out more offers

MPL 20x20x20 / N38 - lamellar magnet
Product available Ships today (order by 14:00)

MPL 20x20x20 / N38 - lamellar magnet

33.21 zł brutto / pcs
SM 32x375 [2xM8] / N42 - magnetic separator
Product available Ships today (order by 14:00)

SM 32x375 [2xM8] / N42 - magnetic separator

1279.20 zł brutto / pcs
NC NeoCube 5 mm kwadraty / N38 - neocube
Product available Ships today (order by 14:00)

NC NeoCube 5 mm kwadraty / N38 - neocube

49.99 zł brutto / pcs
MW 7x2 / N38 - cylindrical magnet
Product available Ships today (order by 14:00)

MW 7x2 / N38 - cylindrical magnet

0.381 zł brutto / pcs
It is the "heart" of every magnetic filter used in industry for cleaning raw materials. Its task is separation (separation) of metal filings from the transported material. High magnetic induction on the surface allows catching the finest iron particles.
The rod consists of a cover tube made of high-quality acid-resistant steel (AISI 304 or 316). Inside there is a stack of strong neodymium magnets arranged in a special configuration (magnetic circuit). Such construction ensures full resistance to corrosion, water, oils, and acids.
Due to the high power of the magnet, direct removal of filings can be troublesome and time-consuming. The most effective home method is using adhesive tape, which we wrap around the dirt and peel off. In industry, cover tubes (so-called Easy Clean system) are used, from which the magnetic insert slides out.
Magnetic induction measured in Gauss (Gs) determines the density of magnetic flux on the rod surface. For basic machine protection against pieces of iron, standard power is sufficient. For the food and precision industry, we recommend the highest induction parameters.
Yes, as a manufacturer, we make rods of any length and diameter (standard is dia 25mm and 32mm). The rod end is strictly adapted to the fastening system in your device. We ensure fast realization of special orders and technical advice.
