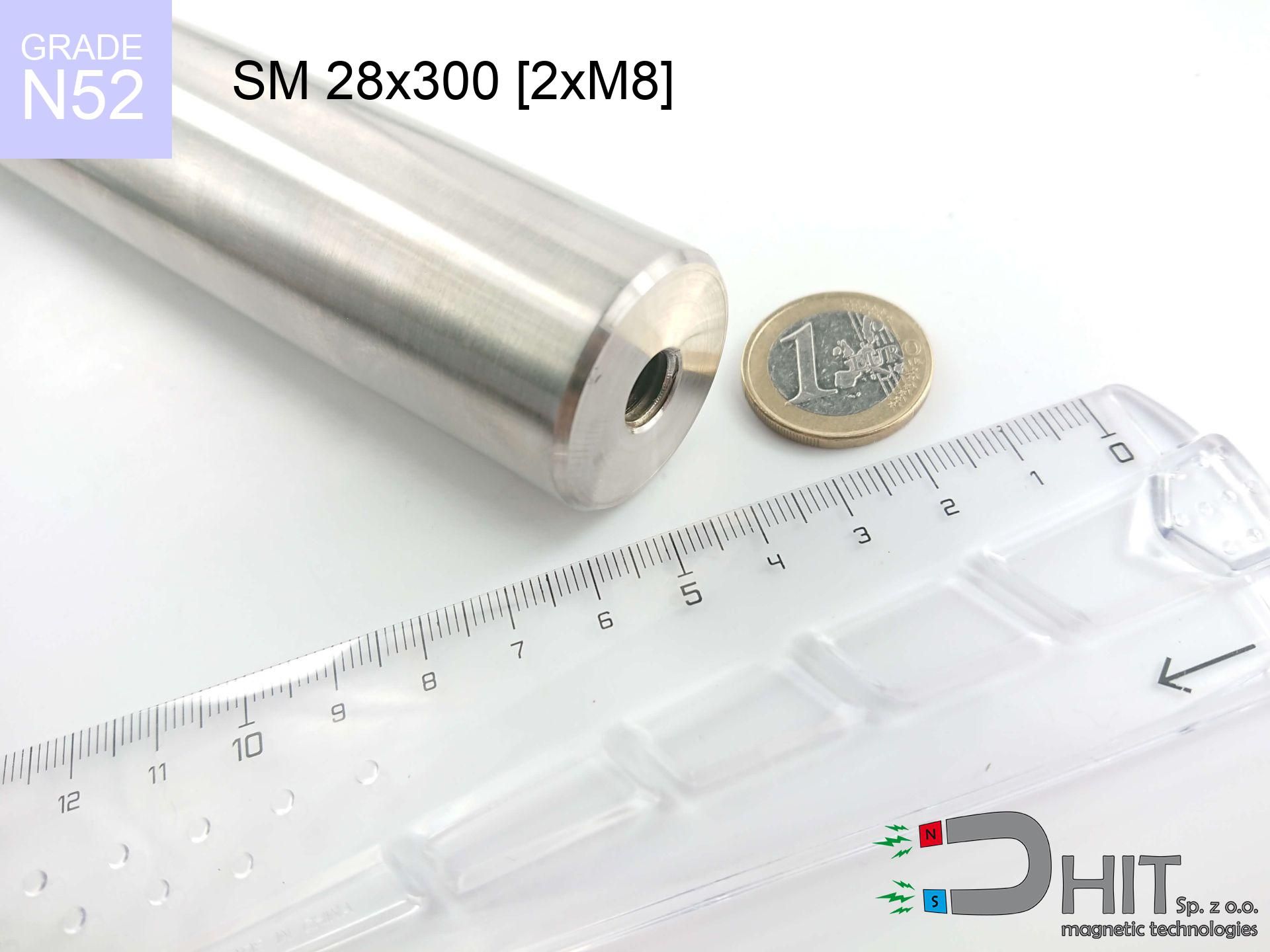

SM 28x300 [2xM8] / N52 - magnetic separator

magnetic separator

Catalog no 130524

Diameter Ø
28 mm [±1 mm]
Height
300 mm [±1 mm]
Weight
1455.1 g
Magnetic Flux
~ 8 500 Gauss [±5%]

How we measure these parameters — certificates and measurements

see technical specifications »

770.00 zł net / pcs

947.10 zł with VAT (23% VAT) / pcs

price for transport

bulk discounts:

Need more?
Quantity
Net
Gross
price from 1 pcs
770.00 zł
947.10 zł
price from 5 pcs
731.50 zł
899.75 zł
price from 10 pcs
693.00 zł
852.39 zł

Frequently asked questions

Which rod should I choose for fine contamination?
For particles below 0.5 mm — a Ø32 mm rod in grade N52, with surface induction of about 10,000 Gs. A Ø25 rod in grade N42 gives about 6,500 Gs and is chosen for contamination above 1 mm: bolts, washers, pieces of wire.
Which rod pitch should I choose?
The narrow pitch, 40 mm centre to centre, for fine free-flowing fractions — it gives denser coverage of the cross-section. The wide pitch, 50 mm, for granulates and for damp, greasy or sticky materials, where a narrow pitch risks the material bridging above the rods.
Why does efficiency drop after a few weeks of operation?
Almost always because the separator has not been cleaned. The layer of captured particles shields the field, and further particles settle on that layer rather than on the rod surface, where the gradient is far stronger. The magnets themselves do not weaken at that rate.

Guides from the knowledge base

Want to talk magnets?

Call us now +48 888 99 98 98 alternatively let us know using contact form the contact section.
Specifications and structure of a neodymium magnet can be estimated using our power calculator.

Order by 14:00 and we’ll ship today!

Detailed specification - SM 28x300 [2xM8] / N52 - magnetic separator

Specification / characteristics - SM 28x300 [2xM8] / N52 - magnetic separator

properties
properties values
Cat. no. 130524
Production/Distribution Dhit sp. z o.o.
ul. Zielona 14 05-850 Ożarów Mazowiecki PL
Country of origin Poland / China / Germany
Customs code 85059029
Diameter Ø 28 mm [±1 mm]
Height 300 mm [±1 mm]
Weight 1455.1 g
Material Type Stainless steel AISI 304 / A2
Magnetic Flux ~ 8 500 Gauss [±5%]
Size/Mount Quantity M8x2
Polarity circumferential - 11 poles
Casing Tube Thickness 1 mm
Manufacturing Tolerance ±1 mm

Magnetic properties of material N52

Specification / characteristics SM 28x300 [2xM8] / N52 - magnetic separator
properties values units
remenance Br [min. - max.] ? 14.2-14.7 kGs
remenance Br [min. - max.] ? 1420-1470 mT
coercivity bHc ? 10.8-12.5 kOe
coercivity bHc ? 860-995 kA/m
actual internal force iHc ≥ 12 kOe
actual internal force iHc ≥ 955 kA/m
energy density [min. - max.] ? 48-53 BH max MGOe
energy density [min. - max.] ? 380-422 BH max KJ/m
max. temperature ? ≤ 80 °C

Physical properties of sintered neodymium magnets Nd2Fe14B at 20°C

Physical properties of sintered neodymium magnets Nd2Fe14B at 20°C
properties values units
Vickers hardness ≥550 Hv
Density ≥7.4 g/cm3
Curie Temperature TC 310 °C
Curie Temperature TF 590 °F
Specific resistance 150 μΩ⋅cm
Bending strength 250 MPa
Compressive strength 1000~1100 MPa
Thermal expansion parallel (∥) to orientation (M) (3-4) x 10-6 °C-1
Thermal expansion perpendicular (⊥) to orientation (M) -(1-3) x 10-6 °C-1
Young's modulus 1.7 x 104 kg/mm²

Table 1: Rod construction
SM 28x300 [2xM8] / N52

Parameter Value Description / Unit
Diameter (Ø) 28 mm
Total length 300 mm (L)
Active length 264 mm
Section count 11 modules
Dead zone 36 mm (2x 18mm starter)
Weight (est.) ~1404 g
Active area 232 cm² (Area)
Housing material AISI 304 1.4301 (Inox)
Surface finish Ra < 0.8 µm Polished
Temp. class 80°C Standard (N)
Force loss (at max °C) -12.8% Reversible loss (physics)
Force (calculated) 22.7 kg (theor.)
Induction (surface) ~8 500 Gauss (Max)
Max T = 80°C. Construction data for M8/M10 thread series.

Chart 2: Field profile (11 sections)

Simulation: 11 magnetic modules (pitch 23 mm).

Chart 3: Temperature performance

Technical and environmental data

Material specification

iron (Fe) 64% – 68%
neodymium (Nd) 29% – 32%
boron (B) 1.1% – 1.2%
dysprosium (Dy) 0.5% – 2.0%
coating (Ni-Cu-Ni) < 0.05%

Sustainability

recyclability (EoL) 100%
recycled raw materials ~10% (pre-cons)
carbon footprint low / zredukowany
waste code (EWC) 16 02 16
Safety card (GPSR)
responsible entity
Dhit sp. z o.o.
ul. Kościuszki 6A, 05-850 Ożarów Mazowiecki
tel: +48 22 499 98 98 | e-mail: bok@dhit.pl
batch number/type
id: 130524-2026
Quick Unit Converter

Force (pull)

Field Strength

Insert data into a field, and the remaining fields will convert in real-time.

Other proposals

UMC 20x6/3x7 / N38 - cylindrical magnetic holder
Product available Ships tomorrow

UMC 20x6/3x7 / N38 - cylindrical magnetic holder

6.99 zł brutto / pcs
UMH 60x15x69 [M8] / N38 - magnetic holder with hook
Product available Ships tomorrow

UMH 60x15x69 [M8] / N38 - magnetic holder with hook

143.91 zł brutto / pcs
UMS 16x6.5x3.5x5 / N38 - conical magnetic holder
Product available Ships tomorrow

UMS 16x6.5x3.5x5 / N38 - conical magnetic holder

4.48 zł brutto / pcs
UMT 12x20 black set / N38 - board holder
Product available Ships tomorrow

UMT 12x20 black set / N38 - board holder

44.99 zł brutto / pcs
A magnetic rod is the basic element of building grate separators and magnetic filters. It is commonly used for cleaning flour, sugar, plastic granules, as well as oils and coolants. Thanks to the use of strong neodymium magnets, the rod catches even metallic dust.
The outer layer is hygienic acid-resistant steel, approved for food contact. The center is filled with NdFeB magnets and pole pieces, arranged to maximize the field on the tube surface. Thanks to this, the rod is durable, hygienic, and easy to keep clean.
Metal filings stick to the surface very strongly, so cleaning requires strength or cleverness. You can use compressed air or special non-magnetic strippers (rings). In industry, cover tubes (so-called Easy Clean system) are used, from which the magnetic insert slides out.
Magnetic induction measured in Gauss (Gs) determines the density of magnetic flux on the rod surface. For basic machine protection against pieces of iron, standard power is sufficient. High induction is necessary when contaminants are microscopic or weakly magnetic.
We fulfill individual orders for bars perfectly matched to your machine or separator. The rod end is strictly adapted to the fastening system in your device. We ensure fast realization of special orders and technical advice.

Advantages as well as disadvantages of Nd2Fe14B magnets.

Pros

Besides their durability, neodymium magnets are valued for these benefits:
  • They virtually do not lose power, because even after ten years the decline in efficiency is only ~1% (based on calculations),
  • Magnets very well resist against demagnetization caused by foreign field sources,
  • In other words, due to the aesthetic surface of gold, the element gains visual value,
  • Magnets possess exceptionally strong magnetic induction on the surface,
  • Neodymium magnets are characterized by very high magnetic induction on the magnet surface and can function (depending on the form) even at a temperature of 230°C or more...
  • Possibility of custom machining as well as adapting to atypical conditions,
  • Fundamental importance in innovative solutions – they are used in data components, electric motors, advanced medical instruments, as well as other advanced devices.
  • Compactness – despite small sizes they provide effective action, making them ideal for precision applications

Weaknesses

Disadvantages of NdFeB magnets:
  • Susceptibility to cracking is one of their disadvantages. Upon strong impact they can fracture. We advise keeping them in a strong case, which not only protects them against impacts but also increases their durability
  • When exposed to high temperature, neodymium magnets experience a drop in strength. Often, when the temperature exceeds 80°C, their strength decreases (depending on the size, as well as shape of the magnet). For those who need magnets for extreme conditions, we offer [AH] versions withstanding up to 230°C
  • Magnets exposed to a humid environment can corrode. Therefore during using outdoors, we recommend using waterproof magnets made of rubber, plastic or other material protecting against moisture
  • Due to limitations in producing threads and complex shapes in magnets, we recommend using casing - magnetic mechanism.
  • Health risk resulting from small fragments of magnets pose a threat, when accidentally swallowed, which becomes key in the aspect of protecting the youngest. It is also worth noting that small elements of these magnets can complicate diagnosis medical when they are in the body.
  • High unit price – neodymium magnets are more expensive than other types of magnets (e.g. ferrite), which hinders application in large quantities

Holding force characteristics

Maximum holding power of the magnet – what contributes to it?

The force parameter is a theoretical maximum value conducted under standard conditions:
  • using a sheet made of high-permeability steel, acting as a ideal flux conductor
  • whose thickness reaches at least 10 mm
  • characterized by even structure
  • without the slightest air gap between the magnet and steel
  • during pulling in a direction vertical to the plane
  • in neutral thermal conditions

What influences lifting capacity in practice

In real-world applications, the real power results from a number of factors, listed from crucial:
  • Space between magnet and steel – even a fraction of a millimeter of separation (caused e.g. by veneer or unevenness) drastically reduces the magnet efficiency, often by half at just 0.5 mm.
  • Pull-off angle – remember that the magnet holds strongest perpendicularly. Under shear forces, the capacity drops drastically, often to levels of 20-30% of the maximum value.
  • Element thickness – to utilize 100% power, the steel must be adequately massive. Paper-thin metal limits the lifting capacity (the magnet "punches through" it).
  • Steel grade – the best choice is pure iron steel. Hardened steels may have worse magnetic properties.
  • Surface finish – full contact is obtained only on smooth steel. Rough texture reduce the real contact area, reducing force.
  • Temperature – heating the magnet causes a temporary drop of force. Check the maximum operating temperature for a given model.

Lifting capacity was determined using a smooth steel plate of optimal thickness (min. 20 mm), under vertically applied force, whereas under attempts to slide the magnet the lifting capacity is smaller. Moreover, even a small distance between the magnet and the plate lowers the load capacity.

Safety rules for work with NdFeB magnets
Magnetic media

Data protection: Neodymium magnets can ruin data carriers and sensitive devices (heart implants, hearing aids, timepieces).

Implant safety

Individuals with a ICD have to keep an safe separation from magnets. The magnetic field can disrupt the functioning of the implant.

Dust explosion hazard

Drilling and cutting of neodymium magnets carries a risk of fire risk. Neodymium dust reacts violently with oxygen and is hard to extinguish.

Power loss in heat

Keep cool. NdFeB magnets are susceptible to temperature. If you require operation above 80°C, look for HT versions (H, SH, UH).

Sensitization to coating

A percentage of the population experience a contact allergy to nickel, which is the common plating for NdFeB magnets. Frequent touching may cause a rash. We recommend use protective gloves.

GPS and phone interference

Note: neodymium magnets generate a field that confuses sensitive sensors. Keep a separation from your mobile, device, and navigation systems.

Physical harm

Watch your fingers. Two large magnets will join immediately with a force of several hundred kilograms, destroying everything in their path. Be careful!

No play value

Absolutely keep magnets away from children. Choking hazard is high, and the consequences of magnets connecting inside the body are life-threatening.

Immense force

Be careful. Rare earth magnets attract from a distance and connect with massive power, often faster than you can move away.

Fragile material

Beware of splinters. Magnets can explode upon uncontrolled impact, launching shards into the air. We recommend safety glasses.

Important! Learn more about risks in the article: Magnet Safety Guide.
