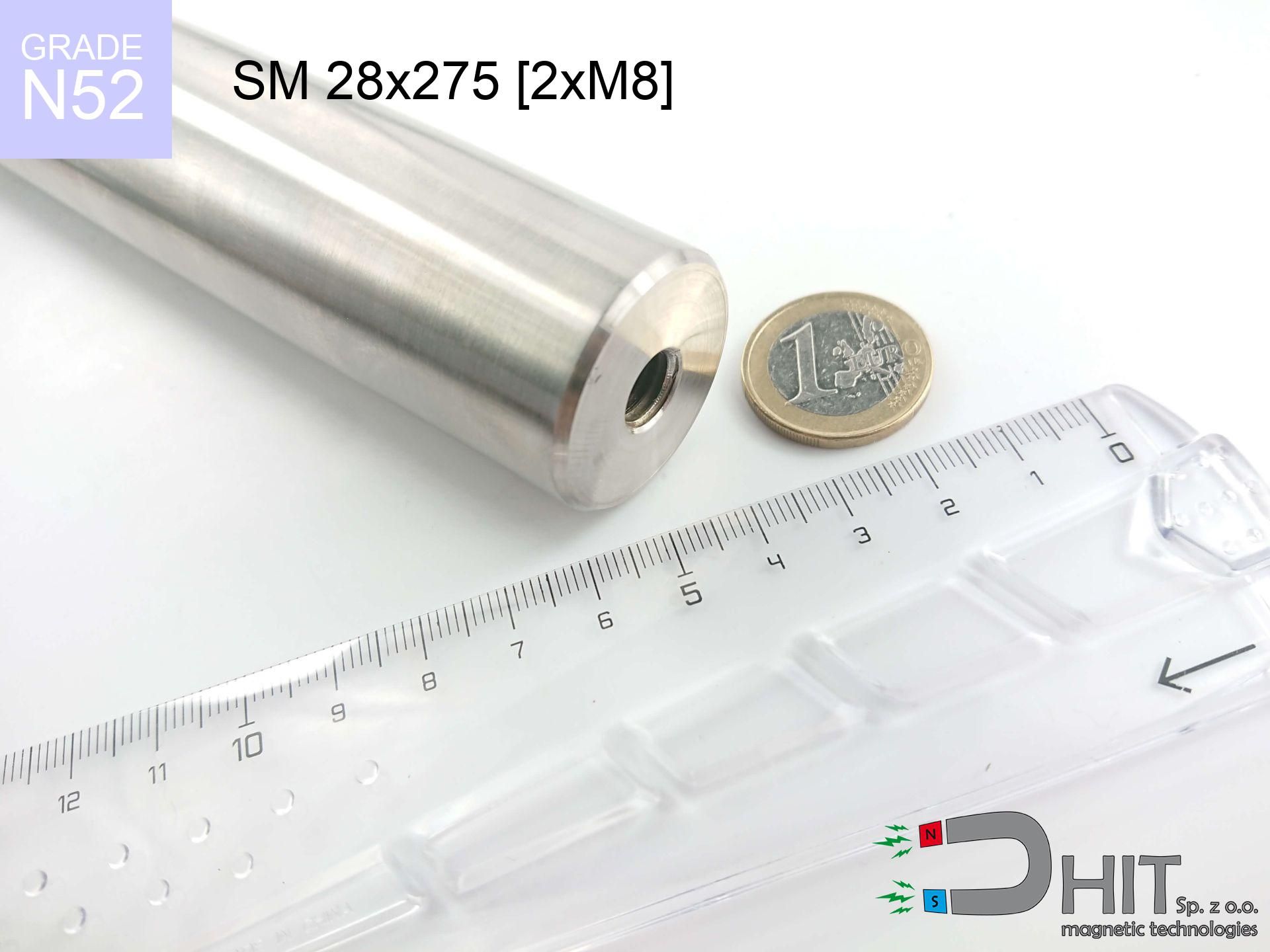

SM 28x275 [2xM8] / N52 - magnetic separator

magnetic separator

Catalog no 130523

Diameter Ø
28 mm [±1 mm]
Height
275 mm [±1 mm]
Weight
1329.66 g
Magnetic Flux
~ 8 500 Gauss [±5%]

How we measure these parameters — certificates and measurements

view specifications »

710.00 zł net / pcs

873.30 zł with VAT (23% VAT) / pcs

price for transport

bulk discounts:

Need more?
Quantity
Net
Gross
price from 1 pcs
710.00 zł
873.30 zł
price from 5 pcs
674.50 zł
829.64 zł
price from 10 pcs
639.00 zł
785.97 zł

Frequently asked questions

Which rod should I choose for fine contamination?
For particles below 0.5 mm — a Ø32 mm rod in grade N52, with surface induction of about 10,000 Gs. A Ø25 rod in grade N42 gives about 6,500 Gs and is chosen for contamination above 1 mm: bolts, washers, pieces of wire.
Which rod pitch should I choose?
The narrow pitch, 40 mm centre to centre, for fine free-flowing fractions — it gives denser coverage of the cross-section. The wide pitch, 50 mm, for granulates and for damp, greasy or sticky materials, where a narrow pitch risks the material bridging above the rods.
Why does efficiency drop after a few weeks of operation?
Almost always because the separator has not been cleaned. The layer of captured particles shields the field, and further particles settle on that layer rather than on the rod surface, where the gradient is far stronger. The magnets themselves do not weaken at that rate.

Guides from the knowledge base

Want to talk magnets?

Call us now +48 888 99 98 98 alternatively let us know using contact form the contact section.
Specifications and structure of a neodymium magnet can be estimated using our power calculator.

Order by 14:00 and we’ll ship today!

Product card - SM 28x275 [2xM8] / N52 - magnetic separator

Specification / characteristics - SM 28x275 [2xM8] / N52 - magnetic separator

properties
properties values
Cat. no. 130523
Production/Distribution Dhit sp. z o.o.
ul. Zielona 14 05-850 Ożarów Mazowiecki PL
Country of origin Poland / China / Germany
Customs code 85059029
Diameter Ø 28 mm [±1 mm]
Height 275 mm [±1 mm]
Weight 1329.66 g
Material Type Stainless steel AISI 304 / A2
Magnetic Flux ~ 8 500 Gauss [±5%]
Size/Mount Quantity M8x2
Polarity circumferential - 10 poles
Casing Tube Thickness 1 mm
Manufacturing Tolerance ±1 mm

Magnetic properties of material N52

Specification / characteristics SM 28x275 [2xM8] / N52 - magnetic separator
properties values units
remenance Br [min. - max.] ? 14.2-14.7 kGs
remenance Br [min. - max.] ? 1420-1470 mT
coercivity bHc ? 10.8-12.5 kOe
coercivity bHc ? 860-995 kA/m
actual internal force iHc ≥ 12 kOe
actual internal force iHc ≥ 955 kA/m
energy density [min. - max.] ? 48-53 BH max MGOe
energy density [min. - max.] ? 380-422 BH max KJ/m
max. temperature ? ≤ 80 °C

Physical properties of sintered neodymium magnets Nd2Fe14B at 20°C

Physical properties of sintered neodymium magnets Nd2Fe14B at 20°C
properties values units
Vickers hardness ≥550 Hv
Density ≥7.4 g/cm3
Curie Temperature TC 310 °C
Curie Temperature TF 590 °F
Specific resistance 150 μΩ⋅cm
Bending strength 250 MPa
Compressive strength 1000~1100 MPa
Thermal expansion parallel (∥) to orientation (M) (3-4) x 10-6 °C-1
Thermal expansion perpendicular (⊥) to orientation (M) -(1-3) x 10-6 °C-1
Young's modulus 1.7 x 104 kg/mm²

Table 1: Rod construction
SM 28x275 [2xM8] / N52

Parameter Value Description / Unit
Diameter (Ø) 28 mm
Total length 275 mm (L)
Active length 239 mm
Section count 10 modules
Dead zone 36 mm (2x 18mm starter)
Weight (est.) ~1287 g
Active area 210 cm² (Area)
Housing material AISI 304 1.4301 (Inox)
Surface finish Ra < 0.8 µm Polished
Temp. class 80°C Standard (N)
Force loss (at max °C) -12.8% Reversible loss (physics)
Force (calculated) 22.7 kg (theor.)
Induction (surface) ~8 500 Gauss (Max)
Max T = 80°C. Construction data for M8/M10 thread series.

Chart 2: Field profile (10 sections)

Simulation: 10 magnetic modules (pitch 23 mm).

Chart 3: Temperature performance

Technical and environmental data

Material specification

iron (Fe) 64% – 68%
neodymium (Nd) 29% – 32%
boron (B) 1.1% – 1.2%
dysprosium (Dy) 0.5% – 2.0%
coating (Ni-Cu-Ni) < 0.05%

Ecology and recycling (GPSR)

recyclability (EoL) 100%
recycled raw materials ~10% (pre-cons)
carbon footprint low / zredukowany
waste code (EWC) 16 02 16
Safety card (GPSR)
responsible entity
Dhit sp. z o.o.
ul. Kościuszki 6A, 05-850 Ożarów Mazowiecki
tel: +48 22 499 98 98 | e-mail: bok@dhit.pl
batch number/type
id: 130523-2026
Magnet Unit Converter

Pulling force

Magnetic Induction

Put your value in just one field to see the conversion for the other fields right away.

Other products

SM 32x450 [2xM8] / N52 - magnetic separator
Product available Ships today (order by 14:00)

SM 32x450 [2xM8] / N52 - magnetic separator

1414.50 zł brutto / pcs
MPL 10x10x3 / N38 - lamellar magnet
Product available Ships today (order by 14:00)

MPL 10x10x3 / N38 - lamellar magnet

1.414 zł brutto / pcs
MW 5x30 / N38 - cylindrical magnet
Product available Ships today (order by 14:00)

MW 5x30 / N38 - cylindrical magnet

3.57 zł brutto / pcs
MW 70x60 / N38 - cylindrical magnet
Product available Ships today (order by 14:00)

MW 70x60 / N38 - cylindrical magnet

630.01 zł brutto / pcs
A magnetic rod is the basic element of building grate separators and magnetic filters. It is commonly used for cleaning flour, sugar, plastic granules, as well as oils and coolants. Thanks to the use of strong neodymium magnets, the rod catches even metallic dust.
The rod consists of a cover tube made of high-quality acid-resistant steel (AISI 304 or 316). The core is a precise magnetic system generating high induction (Gauss). Such construction ensures full resistance to corrosion, water, oils, and acids.
Metal contaminants are strongly attracted, so removing them with a bare hand or glove can be difficult. You can use compressed air or special non-magnetic strippers (rings). For easier operation, it is worth considering ordering a rod in a version with a cleaning sleeve.
The more Gauss, the smaller and more weakly magnetic particles will be effectively caught. For basic machine protection against pieces of iron, standard power is sufficient. High Power versions (~12000-14000 Gs) are necessary for catching metallic dust, oxides, and stainless steel after processing.
We can produce a rod of non-standard length with any mounting termination. You can choose a mounting method consistent with your technical design. Contact us for a quote on a non-standard dimension.

Advantages and disadvantages of neodymium magnets.

Strengths

In addition to their magnetic capacity, neodymium magnets provide the following advantages:
  • They have stable power, and over around 10 years their performance decreases symbolically – ~1% (according to theory),
  • Magnets perfectly defend themselves against loss of magnetization caused by foreign field sources,
  • A magnet with a shiny silver surface is more attractive,
  • Neodymium magnets generate maximum magnetic induction on a contact point, which increases force concentration,
  • Made from properly selected components, these magnets show impressive resistance to high heat, enabling them to function (depending on their form) at temperatures up to 230°C and above...
  • Due to the possibility of flexible forming and adaptation to specialized solutions, magnetic components can be produced in a variety of forms and dimensions, which makes them more universal,
  • Key role in modern technologies – they find application in mass storage devices, motor assemblies, precision medical tools, also technologically advanced constructions.
  • Relatively small size with high pulling force – neodymium magnets offer high power in tiny dimensions, which makes them useful in small systems

Cons

Disadvantages of NdFeB magnets:
  • To avoid cracks upon strong impacts, we recommend using special steel housings. Such a solution secures the magnet and simultaneously increases its durability.
  • Neodymium magnets lose their power under the influence of heating. As soon as 80°C is exceeded, many of them start losing their power. Therefore, we recommend our special magnets marked [AH], which maintain stability even at temperatures up to 230°C
  • When exposed to humidity, magnets usually rust. For applications outside, it is recommended to use protective magnets, such as magnets in rubber or plastics, which secure oxidation as well as corrosion.
  • Due to limitations in realizing nuts and complex forms in magnets, we propose using casing - magnetic holder.
  • Health risk resulting from small fragments of magnets are risky, if swallowed, which becomes key in the aspect of protecting the youngest. It is also worth noting that small elements of these magnets are able to complicate diagnosis medical when they are in the body.
  • Higher cost of purchase is one of the disadvantages compared to ceramic magnets, especially in budget applications

Pull force analysis

Magnetic strength at its maximum – what it depends on?

Magnet power was defined for optimal configuration, assuming:
  • on a block made of mild steel, perfectly concentrating the magnetic field
  • with a thickness of at least 10 mm
  • with an ground contact surface
  • with total lack of distance (no coatings)
  • under vertical force vector (90-degree angle)
  • at room temperature

Practical aspects of lifting capacity – factors

Holding efficiency is affected by working environment parameters, mainly (from priority):
  • Distance – the presence of foreign body (rust, tape, air) acts as an insulator, which reduces capacity rapidly (even by 50% at 0.5 mm).
  • Direction of force – highest force is available only during perpendicular pulling. The force required to slide of the magnet along the surface is typically several times lower (approx. 1/5 of the lifting capacity).
  • Wall thickness – the thinner the sheet, the weaker the hold. Magnetic flux passes through the material instead of generating force.
  • Metal type – not every steel attracts identically. High carbon content weaken the attraction effect.
  • Surface condition – ground elements ensure maximum contact, which increases field saturation. Uneven metal reduce efficiency.
  • Thermal factor – hot environment reduces magnetic field. Exceeding the limit temperature can permanently damage the magnet.

Lifting capacity was determined using a smooth steel plate of suitable thickness (min. 20 mm), under perpendicular detachment force, however under shearing force the lifting capacity is smaller. Additionally, even a minimal clearance between the magnet and the plate lowers the lifting capacity.

H&S for magnets
Fire risk

Dust generated during machining of magnets is self-igniting. Do not drill into magnets unless you are an expert.

Implant safety

Life threat: Neodymium magnets can turn off pacemakers and defibrillators. Do not approach if you have electronic implants.

Crushing risk

Mind your fingers. Two large magnets will snap together instantly with a force of massive weight, crushing anything in their path. Be careful!

Choking Hazard

Strictly store magnets out of reach of children. Ingestion danger is significant, and the consequences of magnets clamping inside the body are tragic.

GPS Danger

Navigation devices and mobile phones are extremely sensitive to magnetic fields. Direct contact with a powerful NdFeB magnet can decalibrate the sensors in your phone.

Operating temperature

Do not overheat. NdFeB magnets are susceptible to heat. If you require resistance above 80°C, look for HT versions (H, SH, UH).

Allergy Warning

Certain individuals suffer from a contact allergy to Ni, which is the typical protective layer for neodymium magnets. Frequent touching can result in an allergic reaction. We strongly advise wear safety gloves.

Material brittleness

Despite the nickel coating, neodymium is brittle and not impact-resistant. Do not hit, as the magnet may shatter into sharp, dangerous pieces.

Threat to electronics

Intense magnetic fields can erase data on payment cards, hard drives, and other magnetic media. Maintain a gap of at least 10 cm.

Caution required

Exercise caution. Neodymium magnets act from a long distance and snap with huge force, often faster than you can react.

Warning! More info about risks in the article: Safety of working with magnets.
