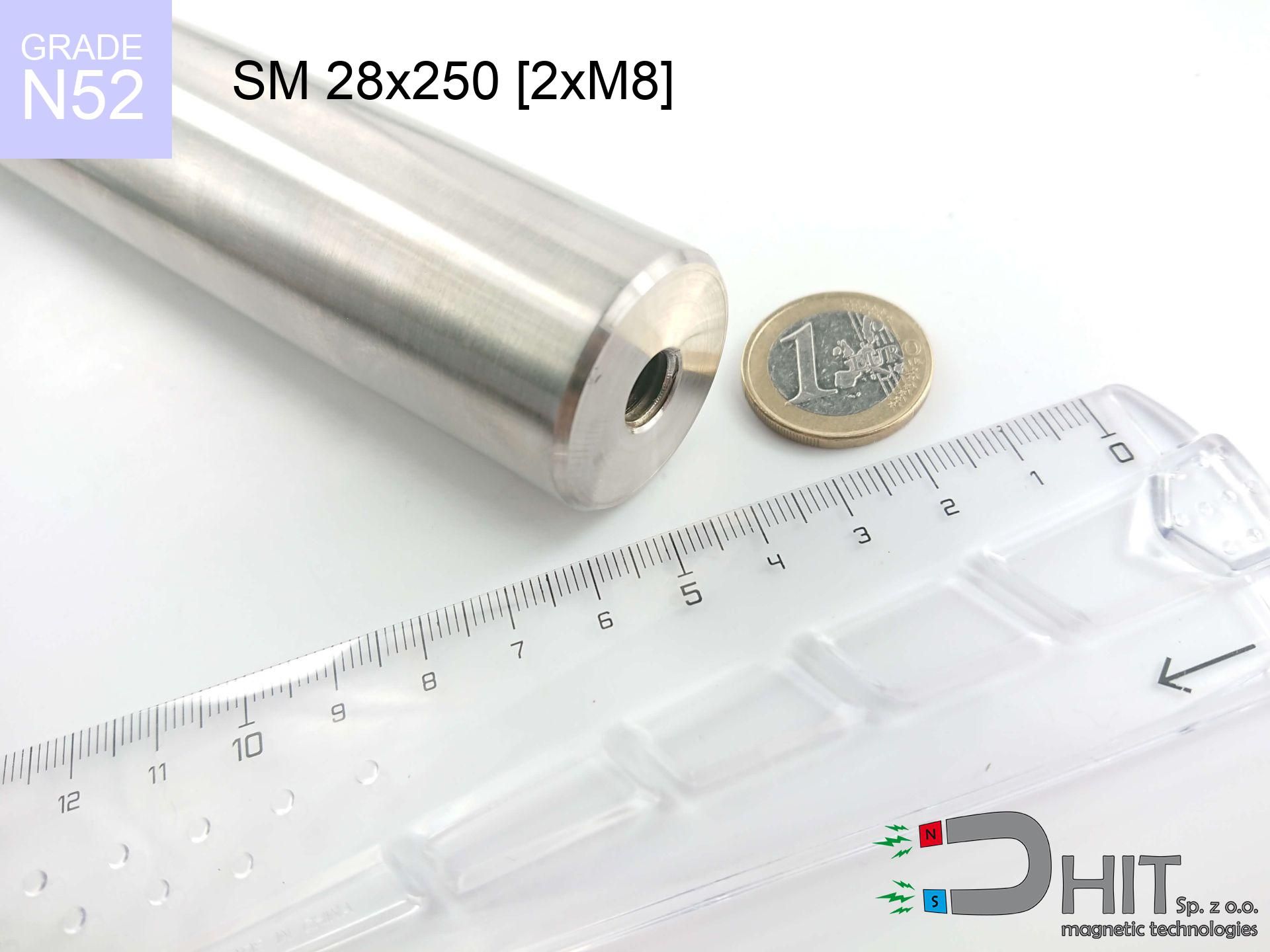

SM 28x250 [2xM8] / N52 - magnetic separator

magnetic separator

Catalog no 130522

Diameter Ø
28 mm [±1 mm]
Height
250 mm [±1 mm]
Weight
1204.22 g
Magnetic Flux
~ 8 500 Gauss [±5%]

How we measure these parameters — certificates and measurements

see technical data »

650.00 zł net / pcs

799.50 zł with VAT (23% VAT) / pcs

price for transport

bulk discounts:

Need more?
Quantity
Net
Gross
price from 1 pcs
650.00 zł
799.50 zł
price from 5 pcs
617.50 zł
759.53 zł
price from 10 pcs
585.00 zł
719.55 zł

Frequently asked questions

Which rod should I choose for fine contamination?
For particles below 0.5 mm — a Ø32 mm rod in grade N52, with surface induction of about 10,000 Gs. A Ø25 rod in grade N42 gives about 6,500 Gs and is chosen for contamination above 1 mm: bolts, washers, pieces of wire.
Which rod pitch should I choose?
The narrow pitch, 40 mm centre to centre, for fine free-flowing fractions — it gives denser coverage of the cross-section. The wide pitch, 50 mm, for granulates and for damp, greasy or sticky materials, where a narrow pitch risks the material bridging above the rods.
Why does efficiency drop after a few weeks of operation?
Almost always because the separator has not been cleaned. The layer of captured particles shields the field, and further particles settle on that layer rather than on the rod surface, where the gradient is far stronger. The magnets themselves do not weaken at that rate.

Guides from the knowledge base

Want to talk magnets?

Call us now +48 888 99 98 98 alternatively let us know using contact form the contact section.
Specifications and structure of a neodymium magnet can be estimated using our power calculator.

Order by 14:00 and we’ll ship today!

Technical - SM 28x250 [2xM8] / N52 - magnetic separator

Specification / characteristics - SM 28x250 [2xM8] / N52 - magnetic separator

properties
properties values
Cat. no. 130522
Production/Distribution Dhit sp. z o.o.
ul. Zielona 14 05-850 Ożarów Mazowiecki PL
Country of origin Poland / China / Germany
Customs code 85059029
Diameter Ø 28 mm [±1 mm]
Height 250 mm [±1 mm]
Weight 1204.22 g
Material Type Stainless steel AISI 304 / A2
Magnetic Flux ~ 8 500 Gauss [±5%]
Size/Mount Quantity M8x2
Polarity circumferential - 9 poles
Casing Tube Thickness 1 mm
Manufacturing Tolerance ±1 mm

Magnetic properties of material N52

Specification / characteristics SM 28x250 [2xM8] / N52 - magnetic separator
properties values units
remenance Br [min. - max.] ? 14.2-14.7 kGs
remenance Br [min. - max.] ? 1420-1470 mT
coercivity bHc ? 10.8-12.5 kOe
coercivity bHc ? 860-995 kA/m
actual internal force iHc ≥ 12 kOe
actual internal force iHc ≥ 955 kA/m
energy density [min. - max.] ? 48-53 BH max MGOe
energy density [min. - max.] ? 380-422 BH max KJ/m
max. temperature ? ≤ 80 °C

Physical properties of sintered neodymium magnets Nd2Fe14B at 20°C

Physical properties of sintered neodymium magnets Nd2Fe14B at 20°C
properties values units
Vickers hardness ≥550 Hv
Density ≥7.4 g/cm3
Curie Temperature TC 310 °C
Curie Temperature TF 590 °F
Specific resistance 150 μΩ⋅cm
Bending strength 250 MPa
Compressive strength 1000~1100 MPa
Thermal expansion parallel (∥) to orientation (M) (3-4) x 10-6 °C-1
Thermal expansion perpendicular (⊥) to orientation (M) -(1-3) x 10-6 °C-1
Young's modulus 1.7 x 104 kg/mm²

Table 1: Rod construction
SM 28x250 [2xM8] / N52

Parameter Value Description / Unit
Diameter (Ø) 28 mm
Total length 250 mm (L)
Active length 214 mm
Section count 9 modules
Dead zone 36 mm (2x 18mm starter)
Weight (est.) ~1170 g
Active area 188 cm² (Area)
Housing material AISI 304 1.4301 (Inox)
Surface finish Ra < 0.8 µm Polished
Temp. class 80°C Standard (N)
Force loss (at max °C) -12.8% Reversible loss (physics)
Force (calculated) 22.7 kg (theor.)
Induction (surface) ~8 500 Gauss (Max)
Max T = 80°C. Construction data for M8/M10 thread series.

Chart 2: Field profile (9 sections)

Simulation: 9 magnetic modules (pitch 23 mm).

Chart 3: Temperature performance

Technical and environmental data

Chemical composition

iron (Fe) 64% – 68%
neodymium (Nd) 29% – 32%
boron (B) 1.1% – 1.2%
dysprosium (Dy) 0.5% – 2.0%
coating (Ni-Cu-Ni) < 0.05%

Sustainability

recyclability (EoL) 100%
recycled raw materials ~10% (pre-cons)
carbon footprint low / zredukowany
waste code (EWC) 16 02 16
Safety card (GPSR)
responsible entity
Dhit sp. z o.o.
ul. Kościuszki 6A, 05-850 Ożarów Mazowiecki
tel: +48 22 499 98 98 | e-mail: bok@dhit.pl
batch number/type
id: 130522-2026
