Product available shipping tomorrow

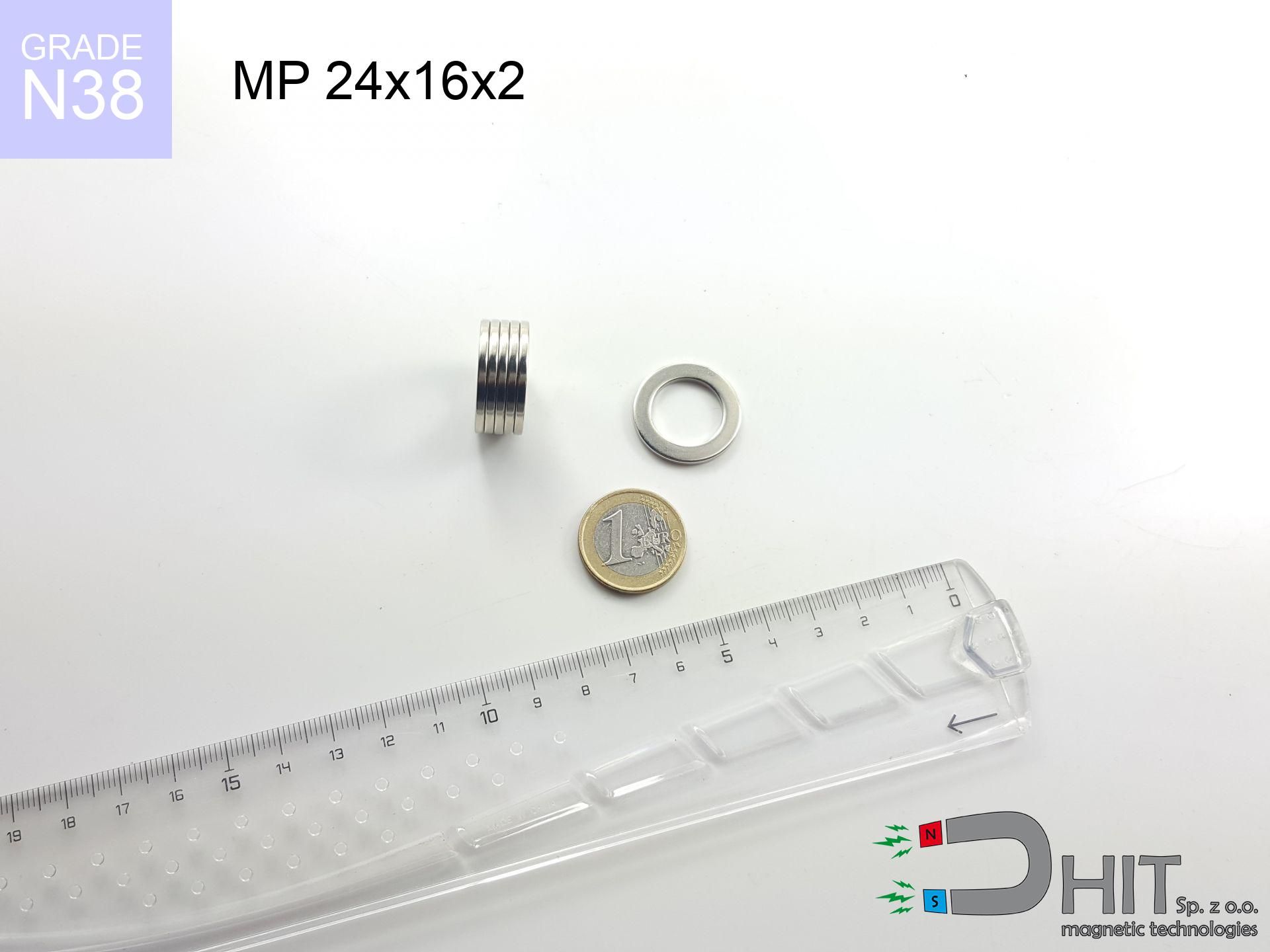

MP 24x16x2 / N38 - ring magnet

ring magnet

Catalog no 030495

GTIN: 5906301812364

Diameter [±0,1 mm]

24 mm

internal diameter Ø [±0,1 mm]

16 mm

Height [±0,1 mm]

2 mm

Weight

3.77 g

Magnetization Direction

↑ axial

Load capacity

1.77 kg / 17.36 N

Magnetic Induction

48.42 mT

Coating

[NiCuNi] nickel

3.69 ZŁ with VAT / pcs + price for transport

3.00 ZŁ net + 23% VAT / pcs

bulk discounts:

Need more?

price from 1 pcs

3.00 ZŁ

3.69 ZŁ

price from 600 pcs

2.82 ZŁ

3.47 ZŁ

price from 2200 pcs

2.64 ZŁ

3.25 ZŁ

Carbon Footprint – environmental impact GPSR Regulation – product safety

Want to negotiate the price?

Call us +48 22 499 98 98 or write via form on the contact page. Test the magnet's power with our power calculator.

Orders placed by 14:00 are shipped the same day.

MP 24x16x2 / N38 - ring magnet

Specification/characteristics MP 24x16x2 / N38 - ring magnet

properties

values

Cat. no.

030495

GTIN

5906301812364

Production/Distribution

Dhit sp. z o.o.

Country of origin

Polska / Chiny / Niemcy

Customs code

85059029

Diameter

24 mm [±0,1 mm]

internal diameter Ø

16 mm [±0,1 mm]

Height

2 mm [±0,1 mm]

Weight

3.77 g [±0,1 mm]

Magnetization Direction

↑ axial

Load capacity ~ ?

1.77 kg / 17.36 N

Magnetic Induction ~ ?

48.42 mT

Coating

[NiCuNi] nickel

tolerancja wykonania

± 0.1 mm

Magnetic properties of material N38

properties

values

units

remenance Br [Min. - Max.] ?

12.2-12.6

kGs

remenance Br [Min. - Max.] ?

1220-1260

coercivity bHc ?

10.8-11.5

kOe

coercivity bHc ?

860-915

kA/m

actual internal force iHc

≥ 12

kOe

actual internal force iHc

≥ 955

kA/m

energy density [Min. - Max.] ?

36-38

BH max MGOe

energy density [Min. - Max.] ?

287-303

BH max KJ/m

max. temperature ?

≤ 80

°C

Physical properties of NdFeB

properties

values

units

Vickers hardness

≥550

Density

≥7.4

g/cm³

Curie Temperature TC

312 - 380

°C

Curie Temperature TF

593 - 716

°F

Specific resistance

150

μΩ⋅Cm

Bending strength

250

Mpa

Compressive strength

1000~1100

Mpa

Thermal expansion parallel (∥) to orientation (M)

(3-4) x 106

°C^-1

Thermal expansion perpendicular (⊥) to orientation (M)

-(1-3) x 10-6

°C^-1

Young's modulus

1.7 x 104

kg/mm²

Shopping tips

Produkt dostępny wysyłka jutro!

MPL 20x10x5 / N38 - lamellar magnet

4.45 ZŁ / pcs

Produkt dostępny wysyłka jutro!

UMGW 16x13x5 [M4] GW / N38 - magnetic holder internal thread

3.80 ZŁ / pcs

Produkt dostępny wysyłka jutro!

MW 12x3 / N38 - cylindrical magnet

1.23 ZŁ / pcs

Produkt dostępny wysyłka jutro!

SM 25x150 [2xM8] / N52 - magnetic separator

467.40 ZŁ / pcs

Due to specific properties, neodymium element MP 24x16x2 / N38 in a ring form finds extensive use in various industries. Thanks to a powerful magnetic field of ${capacity} kg, which can be described as lifting capacity, they are extremely useful in applications that require high magnetic power in a compact space. Applications of MP 24x16x2 / N38 magnets include electric motors, generating systems, audio systems, and several other devices that use magnets for producing motion or energy storage. Despite their powerful strength, they have a relatively low weight of ${weight} grams, which makes them more practical compared to heavier alternatives.

Ring magnets work due to their atomic structure. Their properties arise from a controlled production process, including sintering and magnetization, which allows for the creation of a concentrated magnetic field in a specific direction. This field is ideal for applications in systems requiring motion control. Moreover, ring magnets are resistant to demagnetization.

They are used in various fields of technology and industry, such as production of electronic devices, such as speakers and electric motors, the automotive industry, e.g., in the construction of electric motors, and medicine, where they are used in precision diagnostic devices. Thanks to their temperature resistance and precision makes them indispensable in challenging industrial conditions.

Ring magnets stand out high magnetic strength, resistance to high temperatures, precise control of the magnetic field. Their unique ring form allows for effective use in devices such as motors or speakers. Additionally, these magnets are significantly stronger and more versatile than ferrite counterparts, which has made them popular in advanced technologies and industrial applications.

Ring magnets perform excellently across a wide range of temperatures. They do not lose their magnetic properties, as long as the temperature does not exceed the Curie point. They are more resistant to loss of magnetism than traditional ferrite magnets. For this reason, they are ideal for applications in the automotive industry, robotics, and devices requiring operation in changing or extreme environmental conditions.

Advantages and disadvantages of neodymium magnets

Neodymium magnets, also known as NdFeB magnets, are currently the strongest permanent magnets available on the market. Their exceptional magnetic properties make them suitable for various industries, technologies, and everyday life. Below are the key advantages:

Immense attractive force: Even small neodymium magnets generate a very strong magnetic field.
High coercivity: They are resistant to demagnetization by external magnetic fields.
Wide operating temperature range: Standard neodymium magnets operate up to 80°C, with special versions up to 230°C.
Variety of shapes and sizes: Available in many forms, making them easy to adapt to specific applications.
Relatively low price compared to strength: They offer the best strength-to-price ratio among all magnets.
Longevity: With proper use, they retain their magnetic properties for many years.
Versatility of applications: From electric motors to speakers, separators, toys, and jewelry.

Despite numerous advantages, neodymium magnets also have certain disadvantages to consider:

Brittleness: They are hard but brittle and prone to cracking or chipping upon impact.
Susceptibility to corrosion: They require a protective coating (e.g., nickel, zinc) to prevent rusting.
Limited operating temperature for standard versions: Above the Curie temperature, they lose their magnetic properties.
Strong magnetic field can be dangerous: They can damage electronics, magnetic cards, and pose a risk of attracting metal objects with great force.
Difficulties in mechanical processing: Due to their hardness and brittleness, processing them is complex.

Precautions with Neodymium Magnets

Neodymium magnets are the most powerful, most remarkable magnets on the planet, and the surprising force between them can shock you at first.

Make sure to review all the information we have provided. This will help you avoid harm to your body and damage to the magnets.

Magnets should not be treated as toys. Therefore, it is not recommended for youngest children to have access to them.

Not all neodymium magnets are toys, so do not let children play with them. In such a situation, surgery is necessary to remove them. In the worst case scenario, it can result in death.

Neodymium magnets should not be near people with pacemakers.

Neodymium magnets generate strong magnetic fields. As a result, they interfere with the operation of a pacemaker. This happens because such devices have a function to deactivate them in a magnetic field.

Avoid bringing neodymium magnets close to a phone or GPS.

Strong fields generated by neodymium magnets interfere with compasses and magnetometers used in navigation, as well as internal compasses of smartphones and GPS devices.

Neodymium magnets can demagnetize at high temperatures.

Although magnets have shown to retain their effectiveness up to 80°C or 175°F, this temperature may vary depending on the type of material, shape, and intended use of the magnet.

The magnet coating is made of nickel, so be cautious if you have an allergy.

Studies show a small percentage of people have allergies to certain metals, including nickel. An allergic reaction often manifests as skin redness and rash. If you have a nickel allergy, try wearing gloves or avoid direct contact with nickel-plated neodymium magnets.

Neodymium magnets can attract to each other, pinch the skin, and cause significant injuries.

Neodymium magnets will jump and also touch together within a radius of several to around 10 cm from each other.

Keep neodymium magnets away from TV, wallet, and computer HDD.

Magnetic fields generated by neodymium magnets can damage magnetic storage media such as floppy disks, credit cards, magnetic ID cards, cassette tapes, video tapes, or other similar devices. They can also damage televisions, VCRs, computer monitors, and CRT displays. You should especially avoid placing neodymium magnets near electronic devices.

Magnets made of neodymium are especially fragile, which leads to shattering.

Neodymium magnets are fragile as well as will shatter if allowed to collide with each other, even from a distance of a few centimeters. Despite being made of metal and coated with a shiny nickel plating, they are not as hard as steel. At the moment of connection between the magnets, small sharp metal fragments can be propelled in various directions at high speed. Eye protection is recommended.

Dust and powder from neodymium magnets are highly flammable.

Avoid drilling or mechanical processing of neodymium magnets. If the magnet is crushed into fine powder or dust, it becomes highly flammable.
